Hokuyo UST-05LX Scanning Laser Rangefinder Scanner synchronous and Failure output

Name: Hokuyo UST05LX Scanning Laser Rangefinder Scanner synchronous and Failure output
Brand: Hokuyo
Price: 1 USD

China Hokuyo UST-05LX Scanning Laser Rangefinder Scanner synchronous and Failure output wholesale

Brand Name : Hokuyo

Model Number : UST-05LX

Place of Origin : Japan

MOQ : 1

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 100PCS/MONTHS

Delivery Time : Negotiate

Packaging Details : Carton

condition : new and original

Manufacturer : Hokuyo

Product No : UST-05LX

Scanning Range : 0.06 - 5m, 270°

Measuring Accuracy : ±40mm

Angular Resolution : 0.25° (360°/1,400 steps)

Scanning Speed : 40Hz (2,400rpm)

Power Source : 12V or 24VDC

Contact Now

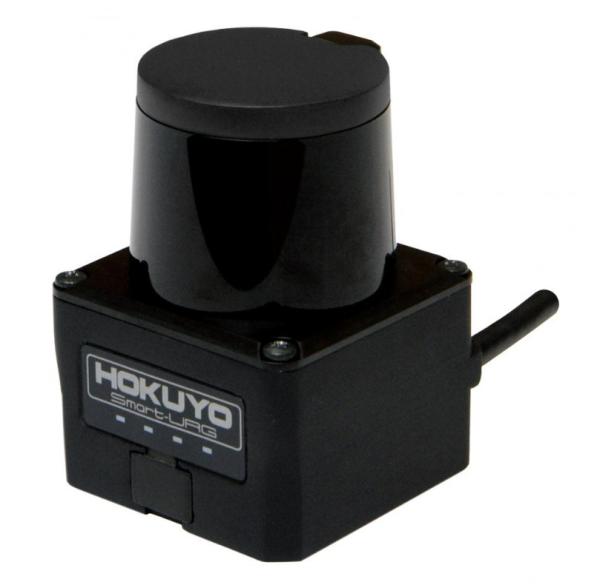

Hokuyo UST-05LX Scanning Laser Rangefinder

The UST-05LX is the most compact and lightweight distance scanning Rangefinder of its kind. The device is W50×D50×H70mm and weighs only 130g. With a wide detection range of 270º and 40Hz response time, the UST-05LX detects size, position and the moving direction of nearby or oncoming objects up to 5 meters away with extreme accuracy. Most commonly, this scanner is found in interactive media systems and autonomous robotics like self-driving vehicles or other applications that warrant optoelectronics to decipher the surrounding environments and output optical data. Purchase your UST-05LX today and discover the future of fast-response distance data output.

Features

• The smallest and the lightest of its kind, W50×D50×H70mm
• It is possible to detect size, position and the moving direction of objects.
• Detection range 5m
• Wide detection angle 270°
• Fast response 25msec
• High angular resolution 0.25°

Characteristics

Light Source	Semiconductor laser diode (FDA approval, Laser safety class 1)
Scanning Range	0.06 - 5m, 270°
Measuring Accuracy	±40mm
Angular Resolution	0.25° (360°/1,400 steps)
Scanning Speed	40Hz (2,400rpm)
Multi Echo Function	N/A
Communication Protocol	SCIP 2.2
Communication	Ethernet 100 BASE-TX
DI/0 Interface	Scanner synchronous and Failure output
Power Source	12V or 24VDC
Power Consumption	0.15A or less (on 24VDC)
Ambient Illumanace	15,000 lx or less
Ambient Illumanace	Avoid direct sunlight as it may cause sensor malfunction.
Protective Structure	IP65
Weight	130g
Size (W X D X H) mm	50 x 50 x 70

Hokuyo UST-05LX Scanning Laser Rangefinder Scanner synchronous and Failure output
